Eigenschaften

Technische Daten

Maschinentyp: Spulen-Nagelmaschine

Gewicht (kg): 1500

Video-Ausgangskontrolle: Bereitgestellt

Maschinenprüfbericht: Bereitgestellt

Kernkomponenten: SPS

Garantie: ein Jahr

wichtige Verkaufsargumente: Hohe Produktivität

Stromspannung: 380 V

Leistung (kW): 8

Anwendung: Herstellung von Spulennägeln

Hervorheben:

380V coil nail collator welder

high productivity roofing nail machine

8kW clout nail collator welder

Grundinformation

Herkunftsort: Jiangsu, China

Markenname: DURA

Zahlung und Versand AGB

Galerie

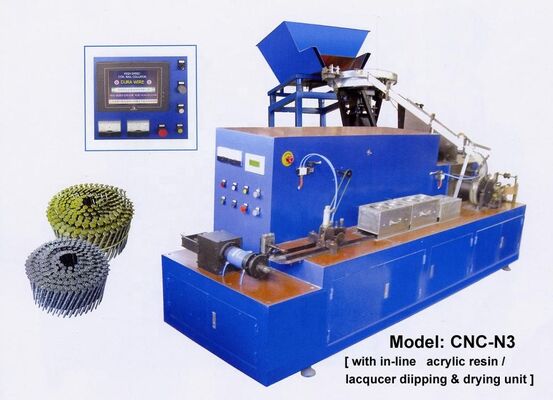

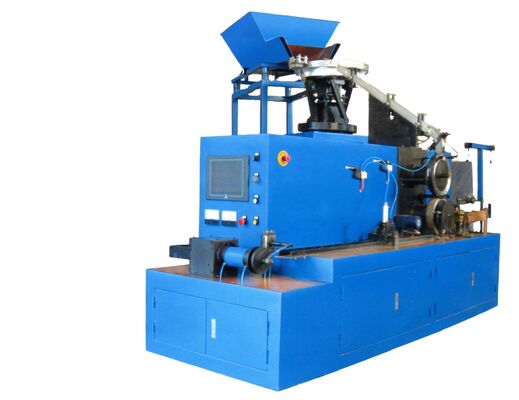

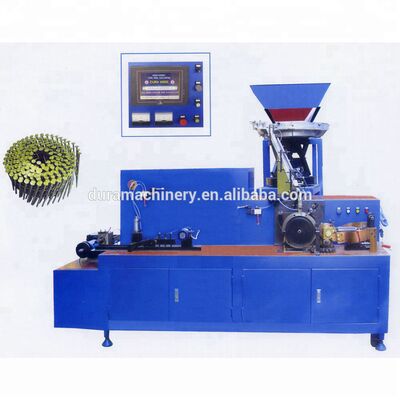

DURA Coil Nail Collator & Welder-High Productivity 380V 8kW Machine for Roofing/Clout Nails

Produkt-Beschreibung

Product Description

Usage and Features

This coil nail collator is a special type of automatic welding equipment. Combining the advantages of the world first-rate products with various feedback from users and long-term troubleshooting accumulation. So far the machine has been improved and upgraded to the 3rd generation with continuous introduction of the latest technology in automatic control system.

Model	CNC-RN	Applicable nail types	Roofing nails with smooth shank or annular, twisted shank
Applicable nail size Dia.×Length: φ2.1-3.05mm/19-75mm			Capacity: Welding speed: 1000-2500pcs/min
Coil spec.: - Angle: 15-16° - Nails per coil: 120pcs - Welding wires: copper-coated steel wire			Welding power supply: DC 490-530V	Welding current: 1000-2000A(secondary side)
Vibrating feeder: Nominal size: 600mm			Rated power: 8KVA	Max. power: 40KVA
Compressed air: ≥0.4-0.8Mpa	Cooling water: 0.1-0.2Mpa	Machine net weight: 1500kgs(approx.) Dimensions:2650×1600×2500mm
Electronic control system	PLC Model: XINJE XC3-42R-E Touch Screen Model: THA62-MT, XINJE, Size: 10.1” VF inverter Model: VB-21P5 220V, 1.5KW, XINJE *Adoption of Synchronous controller for high frequency spot-welding

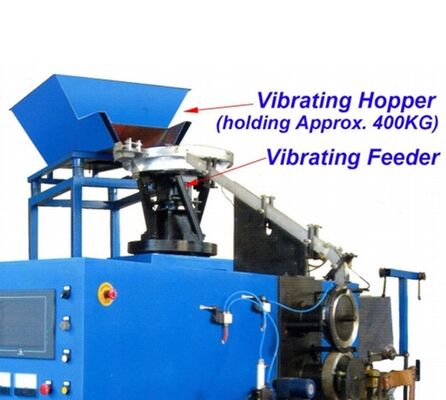

Under regular vibrations, the disordered wire nails/roofing nails put in the vibrating feeder are guided to line up along the spiral passage against the wall of feeder and to get through a long downward groove to welding wheels, where two copper-plated wires are welded with the nails at a certain angle, 15°to 16°, then the welded nails are coiled to a fixed length as per the counter to cut off, forming a coil shape with flat top or cone top.

Related Products

After Sales Service

* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
